Reference Standard	GB/T 12747, IEC 60831
Climatic Category	40/85/56
Operating Temperature	-25～55℃
Storage Temperature	-40～85℃
Voltage Range	230Vac～525Vac, can up to 2000Vac
Capacitance Range	See attached
Capacitance Tolerance	±5%;±10%
Test Voltage Between T-T	2.15Un(10s,20±5℃)
Test Voltage Between T-C	3KVac or √2Un+1KVac which is higher(10s,20±5℃)
tgδ	≤0.001(20±5℃)
Max. Permitted Voltage	1.1Un
Max. Permitted Current	1.3In
Max.Altitude during operation	2000m
Max.Torque of terminals	M6:5Nm; M8:6Nm; M10:8Nm
Max.Torque of installation	10Nm

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
250VAC，50/60Hz Rated Voltage 250VAC, 50/60Hz
BKMJLK0.25-5-3	250	5	11.5	6	13.9	254.8	Φ76*167
BKMJLK0.25-10-3	250	10	23.1	12	27.7	509.6	Φ76*233
BKMJLK0.25-15-3	250	15	34.6	18	41.6	764.3	Φ86*248
BKMJLK0.25-20-3	250	20	46.2	24	55.4	1019.1	Φ86*353
BKMJLK0.25-25-3	250	25	57.7	30	69.3	1273.9	Φ96*353
BKMJLK0.25-30-3	250	30	69.3	36	83.1	1528.7	Φ106*353

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
400VAC，50/60Hz Rated Voltage 400VAC, 50/60Hz
BKMJLK0.4-10-3	400	10	14.4	12	17.3	157.3	Φ76*203
BKMJLK0.4-15-3	400	15	21.7	18	26	236	Φ76*248
BKMJLK0.4-20-3	400	20	28.9	24	34.6	314.5	Φ86*248
BKMJLK0.4-25-3	400	25	36.1	30	43.3	393.2	Φ96*278
BKMJLK0.4-30-3	400	30	43.3	36	52	471.8	Φ106*278
BKMJLK0.4-35-3	400	35	50.5	42	60.6	550.4	Φ116*278
BKMJLK0.4-40-3	400	40	57.7	48	69.3	629.1	Φ126*278
BKMJLK0.4-50-3	400	50	72.2	60	86.6	995.2	Φ136*278
450VAC，50/60Hz Rated Voltage 450VAC, 50/60Hz
BKMJLK0.45-10-3	450	10	12.8	12	15.4	168.5	Φ76*233
BKMJLK0.45-15-3	450	15	19.2	18	23.1	231.7	Φ76*248
BKMJLK0.45-20-3	450	20	25.7	24	30.8	308.9	Φ86*248
BKMJLK0.45-25-3	450	25	32.1	30	38.5	340.3	Φ96*278
BKMJLK0.45-30-3	450	30	38.5	36	46.2	408.3	Φ106*278
BKMJLK0.45-35-3	450	35	44.9	42	53.9	476.4	Φ106*278
BKMJLK0.45-40-3	450	40	51.3	48	61.6	566.8	Φ116*278
BKMJLK0.45-50-3	450	50	64.2	60	77	708.5	Φ126*278
480VAC，50/60Hz Rated Voltage 480VAC, 50/60Hz
BKMJLK0.48-10-3	480	10	12	12	14.4	169.2	Φ76*233
BKMJLK0.48-15-3	480	15	18	18	21.7	196.7	Φ76*278
BKMJLK0.48-20-3	480	20	24.1	24	28.9	262.2	Φ86*278
BKMJLK0.48-25-3	480	25	30.1	30	36.1	327.8	Φ96*278
BKMJLK0.48-30-3	480	30	36.1	36	43.3	408	Φ106*278
BKMJLK0.48-35-3	480	35	42.1	42	50.5	487.5	Φ116*278
BKMJLK0.48-40-3	480	40	48.1	48	57.7	590	Φ126*278
BKMJLK0.48-50-3	480	50	60.1	60	72.2	721.1	Φ136*278
525VAC，50/60Hz Rated Voltage 525VAC, 50/60Hz
BKMJLK0.525-10-3	525	10	11	12	13.2	145.9	Φ76*248
BKMJLK0.525-15-3	525	15	16.5	18	19.8	184.9	Φ76*278
BKMJLK0.525-20-3	525	20	22	24	26.4	246.6	Φ86*278
BKMJLK0.525-25-3	525	25	27.5	30	33	308.2	Φ96*278
BKMJLK0.525-30-3	525	30	33	36	39.6	382.2	Φ106*278
BKMJLK0.525-35-3	525	35	38.5	42	46.3	445.9	Φ116*278
BKMJLK0.525-40-3	525	40	44	48	52.8	520.5	Φ126*278
BKMJLK0.525-50-3	525	50	55	60	66	650.7	Φ136*278

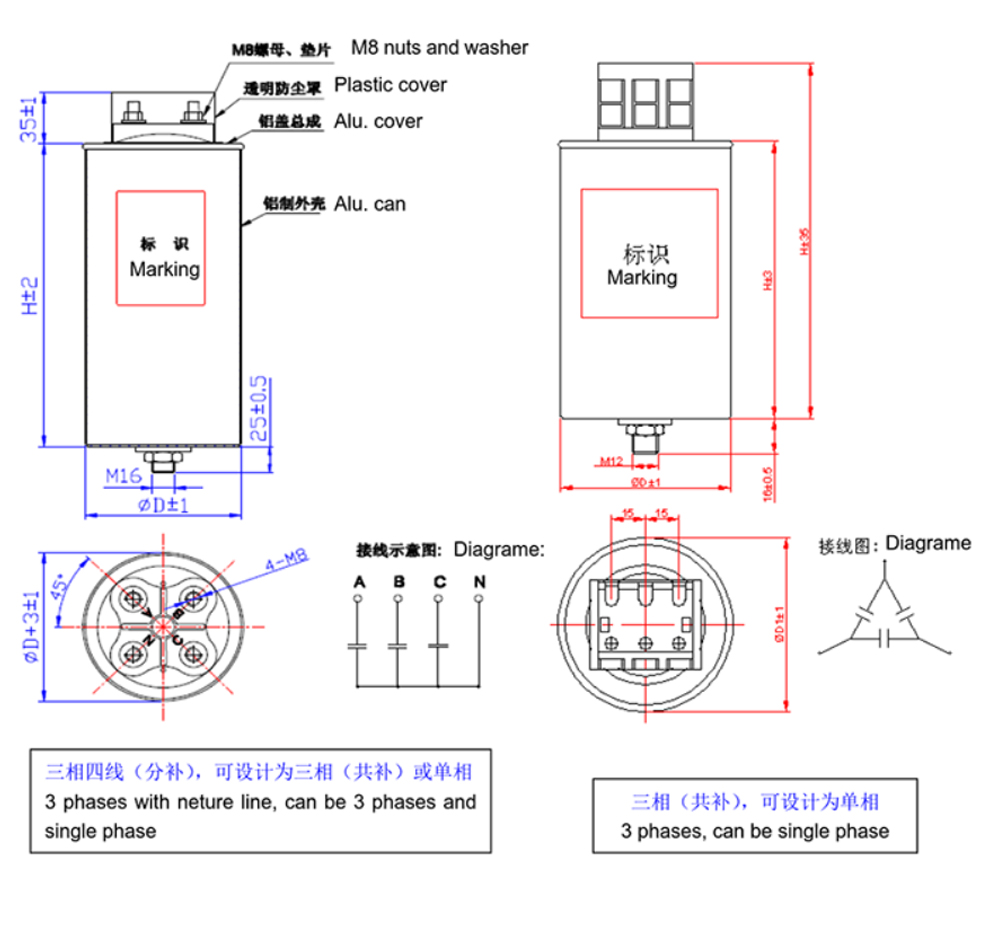

Dimensions of oil-filled products as per the list above.

Special designation upon customer's request.
