DC Filter Metallized Polypropylene Film Capacitor for PCB

◆Features
Metallized polypropylene film and non-inductive structure
Reliable electrical performance
Plastic case (UL94-VO) filled with epoxy resin
High-performance DC filtering applications
(i.e., industrial and high-end power supplies, solar inverters)

Contact Us
PREV：AC Filter Capacitor for PCB NEXT：YGBCMF Square Type Over Voltage Protection Power Capacitors

Product Category

  • Product Details
  • FAQ
  • Contact Us

◆ Product Advantages
• Non-Inductive Structure for Outstanding High-Frequency Performance: Metallized polypropylene film with non-inductive winding achieves extremely low equivalent series inductance (ESL), effectively suppressing voltage ripple in high-frequency DC filter applications and significantly improving power output quality
• Plastic Case with Epoxy Resin Encapsulation: UL94-V0 flame-retardant plastic housing with full epoxy resin sealing provides moisture-proof, vibration-proof, and corrosion-resistant protection for reliable operation in harsh industrial environments
• Direct Replacement for Electrolytic Capacitors: Can directly replace aluminum electrolytic capacitors in DC filter circuits — non-polarized, no liquid electrolyte, no risk of electrolyte dry-out, with service life far exceeding electrolytic capacitors
• PCB-Compatible Design: Standard lead pitch for direct PCB soldering simplifies circuit design and improves overall system reliability

◆ Key Selling Points
• High-Performance DC Filtering: Specifically designed for industrial power supplies, frequency converters, and solar inverters with stable filtering performance and strong ripple suppression capability
• Self-Healing Property for Long-Term Stability: Metallized film self-healing characteristic effectively handles occasional over-voltage events, ensuring long-term operational safety
• Wide Temperature Grade: Meets industrial-grade operating requirements from -40°C to +105°C
• RoHS Compliant: Lead-free and halogen-free materials meet international environmental standards

◆ Primary Applications
• DC bus filtering for industrial switching power supplies
• DC-side filtering for photovoltaic solar inverters
• Decoupling and filtering on the DC side of frequency converters
• High-end UPS uninterruptible power supplies
• Medical power supplies and precision instrument power filtering

Reference Standard GB/T 17702　IEC61701
Climatic Category 40/85/56
Operating emperature（case） -40℃~105℃（+85℃ to +105℃: decreasing fator 1.35% per ℃ for Un.85℃）
Rated Voltage Un, 85°C 500Vdc, 600Vdc, 800Vdc, 900Vdc, 1000Vdc, 1100Vdc, 1200Vdc
Capacitance Tolerance J(±5%), K（±10%）
Voltage Proof 1.5Un（10S）
Insulation Resistance (IR×Cn） ≥10000s （20℃，100Vdc，1min）
Ls ＜1nH per mm of lead spacing
Maximum Peak Current Ip (A) Ip=C*dv/dt
Expected lifetime 100,000hrs @ Un, θhs=70℃



Un 85℃: 500Vdc
Cn

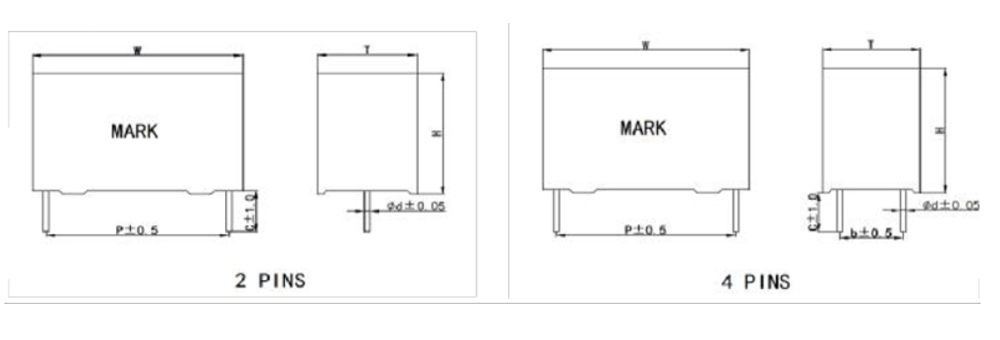

(μF)		 W±1.0 H±1.0 T±1.0 P±0.5 b±0.5 d±0.05 dv/dt
(V/μs)		 tgδ×(10⁻⁴) ESR
@10kHz(mΩ)		 Imax(A)
1kHz 10kHz
5 32 20 11 27.5 - 0.8 65 10 100 8.5 5
10 32 24.5 15 27.5 - 0.8 65 10 100 7.5 6.5
30 42 40 20 37.5 10.2 1 30 15 150 5 14.5
50 41 43 28 37.5 12.7 1.2 30 15 150 4 16
80 57 43.5 29.5 52.5 20.3 1.2 15 35 350 5 16.5
100 57 50 35 52.5 20.3 1.2 15 35 350 4 18
110 57 50 35 52.5 20.3 1.2 15 35 350 4 19

Un 85℃: 600Vdc
Cn
(μF)		 W±1.0 H±1.0 T±1.0 P±0.5 b±0.5 d±0.05 dv/dt
(V/μs)		 tgδ×(10⁻⁴) ESR
@10kHz(mΩ)		 Imax(A)
1kHz 10kHz
2 32 18 9 27.5 - 0.8 65 11 100 47.8 2.8
5 32 22 13 27.5 - 0.8 65 11 100 19.1 6.9
10 32 30 16 27.5 - 0.8 65 11 100 11.1 11.8
15 32 37 22 27.5 10.2 0.8 65 11 100 7.4 17.8
20 42 40 20 37.5 10.2 1 30 20 175 9.8 12.3
30 42 44 24 37.5 12.7 1 30 20 175 6.5 18.5
40 42 45 30 37.5 20.3 1.2 30 20 175 5.2 23
55 42 50 35 37.5 20.3 1.2 30 20 175 3.8 31.6
70 42 55 40 37.5 20.3 1.2 30 20 175 3 35
85 42 60 45 37.5 20.3 1.2 30 20 175 2.5 35
40 57 45 25 52.5 12.7 1.2 15 36 350 9.8 12.3
55 57 43.5 29.5 52.5 12.7 1.2 15 36 350 7.1 16.9
70 57 50 35 52.5 20.3 1.2 15 36 350 5.6 21.5
85 57 55 45 52.5 20.3 1.2 15 36 350 4.8 25.1
100 57 55 45 52.5 20.3 1.2 15 36 350 4.2 28.7
140 57 65 45 52.5 20.3 1.2 15 36 350 3 35

Un 85℃: 800Vdc
Cn
(μF)		 W±1.0 H±1.0 T±1.0 P±0.5 b±0.5 d±0.05 dv/dt
(V/μs)		 tgδ×(10⁻⁴) ESR
@10kHz(mΩ)		 Imax(A)
1kHz 10kHz
2 32 18 9 27.5 - 0.8 65 10 95 45.4 2.9
5 32 24.5 15 27.5 - 0.8 65 10 95 18.2 7.3
10 32 37 22 37.5 - 0.8 65 10 95 11 12
14 32 37 22 27.5 - 0.8 65 10 95 8.2 12
10 41 33.5 18.5 37.5 - 1 30 18 160 17.8 6.7
15 42 40 20 37.5 10.2 1 30 18 160 11.9 10.1
20 42 44 24 37.5 12.7 1 30 18 160 8.9 13.5
25 42 44 24 37.5 12.7 1 30 18 160 7.1 16.8
35 42 50 35 37.5 20.3 1.2 30 18 160 4.8 25.1
50 42 55 40 37.5 20.3 1.2 30 18 160 3.8 31.4
65 42 60 45 37.5 20.3 1.2 30 18 160 2.9 35
25 57 45 25 52.5 12.7 1.2 15 33 320 14.3 8.4
35 57 45 25 52.5 12.7 1.2 15 33 320 10.2 11.8
50 57 50 35 52.5 12.7 1.2 15 33 320 7.1 16.8
65 57 55 45 52.5 20.3 1.2 15 33 320 5.5 21.9
100 57 65 45 52.5 20.3 1.2 15 33 320 3.8 31.4
110 57 65 45 52.5 20.3 1.2 15 33 320 3.5 34.5

Un 85℃: 900Vdc
Cn
(μF)		 W±1.0 H±1.0 T±1.0 P±0.5 b±0.5 d±0.05 dv/dt
(V/μs)		 tgδ×(10⁻⁴) ESR
@10kHz(mΩ)		 Imax(A)
1kHz 10kHz
1 32 18 9 27.5 - 0.8 70 9 90 86 1.5
5 32 22 13 27.5 - 0.8 70 9 90 28.7 4.6
10 32 37 22 37.5 - -0.8 70 9 90 12 12.2
10 42 40 20 37.5 10.2 1 35 17 150 16.7 7.2
20 42 44 24 37.5 12.7 1 35 17 150 8.4 14.4
35 42 55 40 37.5 20.3 1.2 35 17 150 5.1 23.4
50 42 60 45 37.5 20.3 1.2 35 17 150 3.6 33.5
15 57 45 25 52.5 10.2 1.2 15 31 300 16.7 7.2
20 57 45 25 52.5 12.7 1.2 15 31 300 16.7 7.2
35 57 43.5 29.5 52.5 12.7 1.2 15 31 300 9.6 12.6
50 57 50 35 52.5 20.3 1.2 15 31 300 6.7 17.9
65 57 55 45 52.5 20.3 1.2 15 31 300 5.1 23.3
85 57 65 45 52.5 20.3 1.2 15 31 300 4.2 28.5

Un 85℃: 1000Vdc
Cn
(μF)		 W±1.0 H±1.0 T±1.0 P±0.5 b±0.5 d±0.05 dv/dt
(V/μs)		 tgδ×(10⁻⁴) ESR
@10kHz(mΩ)		 Imax(A)
1kHz 10kHz
1 32 18 9 27.5 - 0.8 75 8 80 76.4 1.7
5 32 30 16 27.5 - 0.8 75 8 80 15.3 8.6
8 32 37 22 27.5 12.7 0.8 75 8 80 10 13.3
5 41 30 16 37.5 - 1 37 15 140 31.2 3.8
8 41 33 18 37.5 - 1 37 15 140 19.5 6.2
10 42 40 20 37.5 - 1 37 15 140 15.6 6.7
30 42 55 40 37.5 20.3 1.2 37 15 140 5.2 23.1
40 42 60 45 37.5 20.3 1.2 37 15 140 4.2 28.7
15 57 45 25 52.5 12.7 1.2 17 28 280 20.8 20.8
35 57 50 35 52.5 20.3 1.2 17 28 280 8.9 13.5
55 57 55 45 52.5 20.3 1.2 17 28 280 5.2 21.1
70 57 65 45 52.5 20.3 1.2 17 28 280 4.5 26
