Three-Phase AC Filter Capacitors
Home / Products / Metallized Film Capacitors / Power Capacitors / Three-Phase AC Filter Capacitors
  • Three-Phase AC Filter Capacitors
  • Three-Phase AC Filter Capacitors

Three-Phase AC Filter Capacitors

◆Features
Excellent self-healing
Metallized polypropylene film and non-inductive structure
Suitable for three-phase power factor correction and LCL filter

Contact Us
PREV：Plastic Case Dry Type DC-Link Automotive Capacitors NEXT：AC Filter Capacitor for PCB

Product Category

  • Product Details
  • FAQ
  • Contact Us

◆ Product Advantages

• Integrated three-phase structure with simplified wiring: Three-phase filter capacitors are integrated into a single package to reduce connection points, lower risks of installation errors, simplify power circuit design for three-phase inverter systems and save PCB space.
• Non-inductive metallized polypropylene film structure: Non-inductive winding technology is adopted for all three-phase windings. The electrical parameters of each phase are highly consistent to guarantee balanced three-phase filtering performance.
• Excellent self-healing property: The shared metallized film dielectric for three phases features self-healing capability. Automatic recovery can be achieved upon partial breakdown of any single phase, enhancing overall system reliability.
• Compact structure and high power density: The three-phase-in-one package greatly reduces occupied volume, suitable for compact inverters with high power density requirements.

◆ Core Selling Points

• Precisely matched with three-phase Power Factor Correction (PFC): Optimized specifically for three-phase PFC circuits. It helps achieve power factor close to 1 on the three-phase power supply side and reduces reactive power loss.
• Perfectly compatible with LCL filter applications: An ideal capacitor component for three-phase LCL filter topologies, enabling grid-tied inverters to meet grid harmonic injection standards.
• High consistency and strong interchangeability: Capacitance deviation of three phases is controlled within tight tolerances with favorable batch-to-batch consistency.
• Wide voltage class coverage: Multiple AC voltage ratings are available to satisfy requirements of various inverter systems.

◆ Main Applications

• LCL filtering for three-phase grid-tied photovoltaic inverters
• AC output filtering for three-phase frequency converters
• Inverter output filtering for three-phase UPS
• Three-phase Power Factor Correction (PFC) circuits
• Three-phase Active Power Filter (APF)
Reference Standard GB/T 17702 IEC61701 Option: GB/T 12747(IEC 60831)
Over voltage 1.1Urms up to 8h daily
1.15Urms up to 30min daily
1.2Urms for 5 min or 1.3Urms for 1min during life 200 times
Operating temperature range (Hotspot) -40℃~70℃
Rated RMS Voltage (Urms) 230Vac~850Vac
Rated Frequency 50/60Hz
Capacitance Cn 8μF~330μF

Capacitance Tolerance ±5%，±10%
Internal connection Connection triangle (△)
Storage Temperature -40℃~70℃
Case Aluminum can
Voltage Proof T-T：2.15ms(Vac)(10s)
T-C：2000+2Un（Vac）（10S）(min 3000Vac)
 Insulation Resistance (IR×Cn) ≥3000S（20℃，100Vdc，1min）
Dissipation Factor (dielectric) ≤0.02%（50Hz，20℃）
Internal stuffing Oil (Non PCB)
Expected lifetime △C/C≤5% after 100,000hrs under rated condition @50℃
Mounting position Vertical
Max Torque of installation 10Nm（M12）
Max Torque of terminals 2.0Nm（M5）；3.0Nm（M6）
Colling Natural air-cooled or forced-cooled
Maximum allowed altitude 2000m



Urms=230Vac

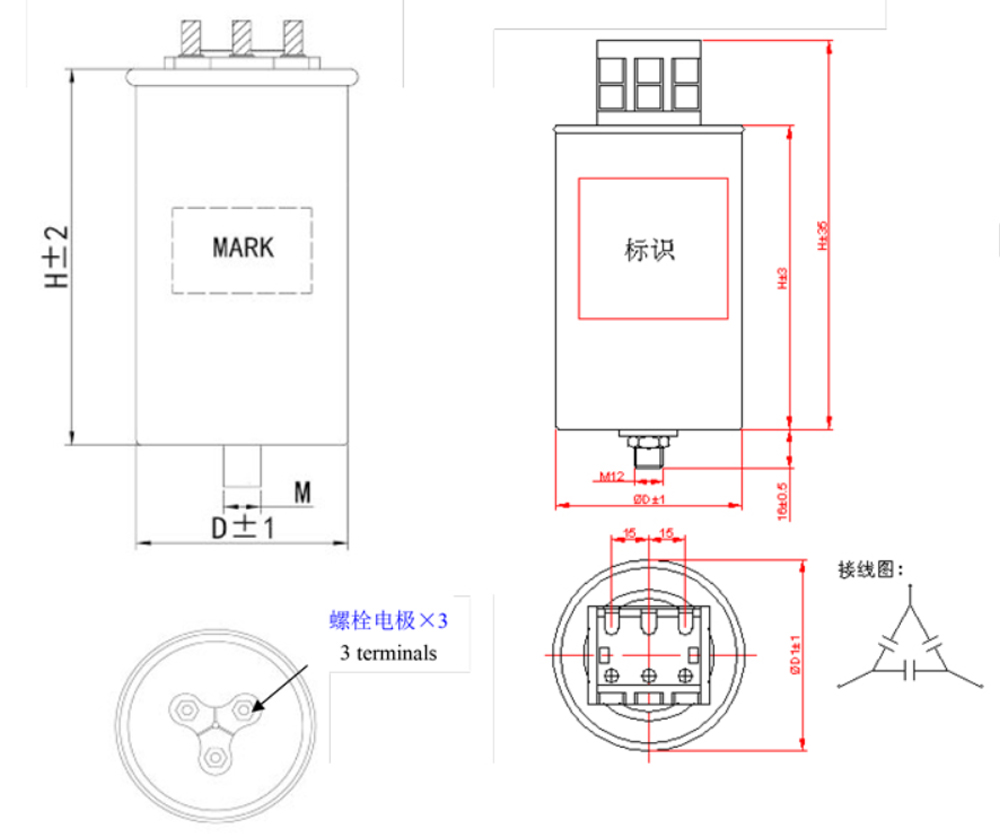

Cn（μF） D±1.0（mm） H±3.0（mm） Rs（mΩ） Ls（nH） Rm（℃/W） Imax（A） Î（KA） Îs（KA） M (KG)
3×84 76 200 3×1.5 100 4.5 3×34 1.6 4.8 1.1
3×105 76 230 3×1.6 120 4 3×36 1.5 4.5 1.2
3×160 86 230 3×1.2 120 3.5 3×43 2.3 6.9 1.6
3×250 116 200 3×0.8 110 3.1 3×53 3 9 2.4
3×330 116 230 3×0.9 130 2.7 3×54 4.8 14.3 2.8

Urms=550Vac
Cn（μF） D±1.0（mm） H±3.0（mm） Rs（mΩ） Ls（nH） Rm（℃/W） Imax（A） Î（KA） Îs（KA） M (KG)
3×19 76 170 3×1.0 110 5.1 3×32 1 2.9 1
3×23 86 170 3×0.9 110 4.8 3×35 1.2 3.6 1.2
3×39 96 200 3×0.9 110 3.9 3×40 1.4 4.3 1.7
3×48 96 230 3×1.0 120 3.5 3×42 1.3 4 1.9
3×100 136 220 3×0.6 100 2.8 3×47 2.6 7.9 3.8

Urms=690Vac
Cn（μF） D±1.0（mm） H±3.0（mm） Rs（mΩ） Ls（nH） Rm（℃/W） Imax（A） Î（KA） Îs（KA） M (KG)
3×33.5 116 170 3×0.8 110 3.5 3×42 1.6 4.9 2.2
3×38 116 170 3×0.8 110 3.5 3×42 1.6 4.9 2.2

Urms=760Vac
Cn（μF） D±1.0（mm） H±3.0（mm） Rs（mΩ） Ls（nH） Rm（℃/W） Imax（A） Î（KA） Îs（KA） M (KG)
3×8 76 170 3×1.3 110 5.6 3×24 0.6 1.7 1
3×10 86 170 3×1.1 110 5.2 3×27 0.7 2 1
3×33 106 230 3×1.0 130 3 3×41 1.2 3.5 2.3
3×49 136 230 3×0.9 130 2.7 3×43 1.9 5.7 3.7
