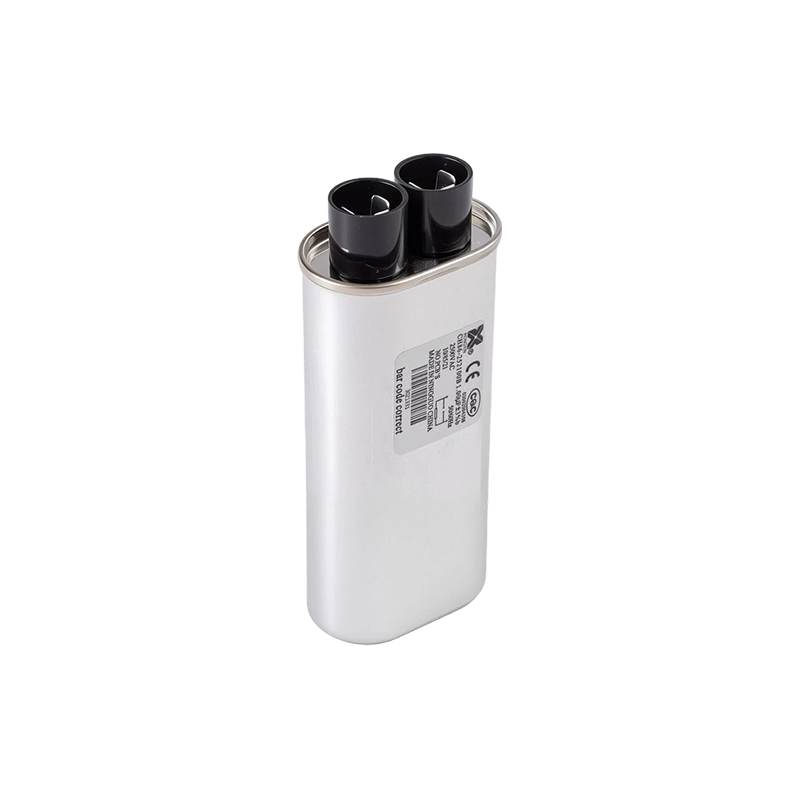

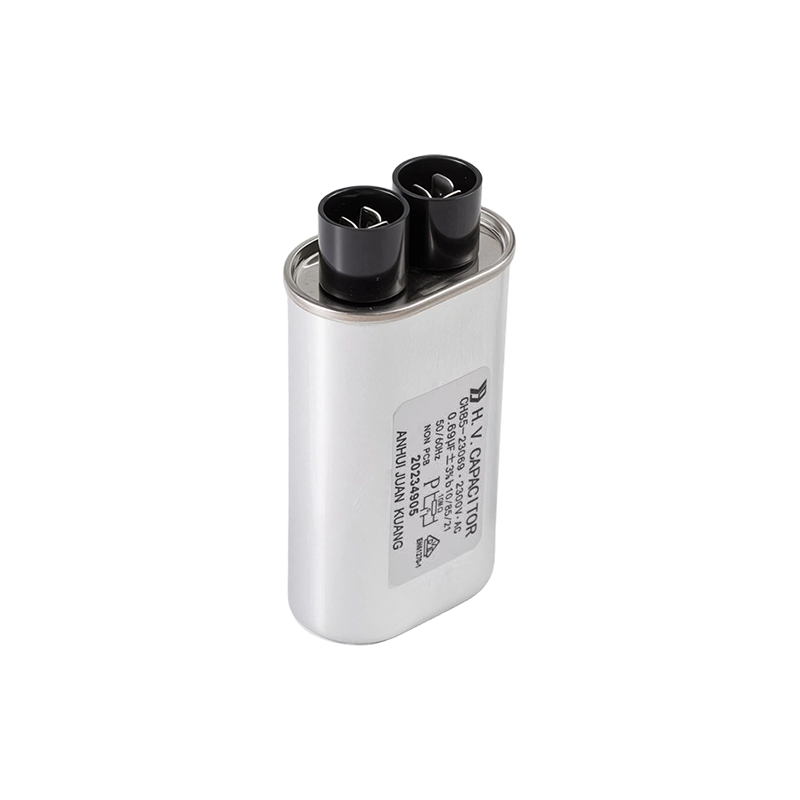

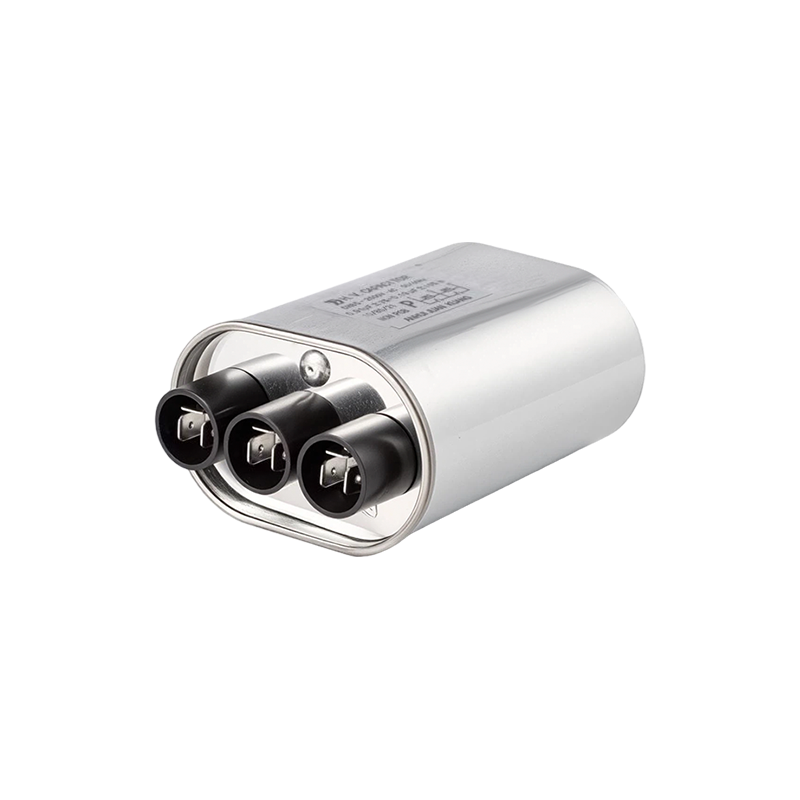

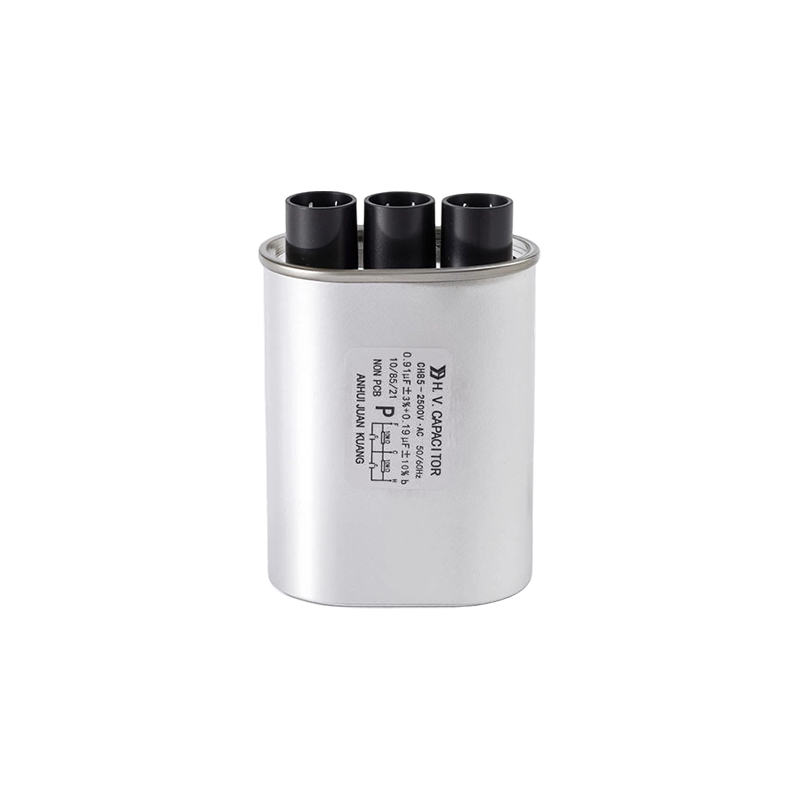

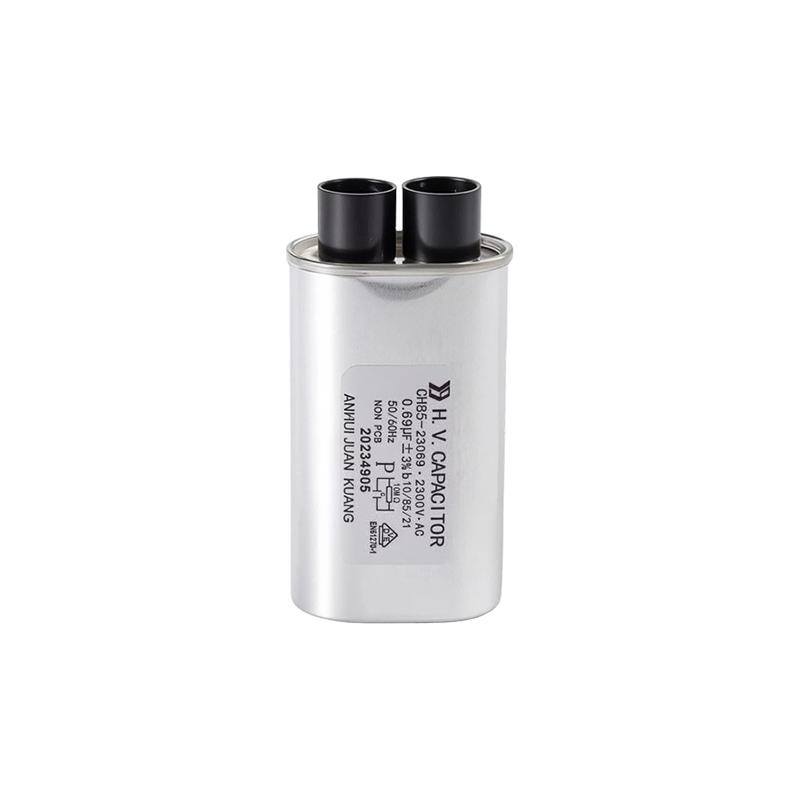

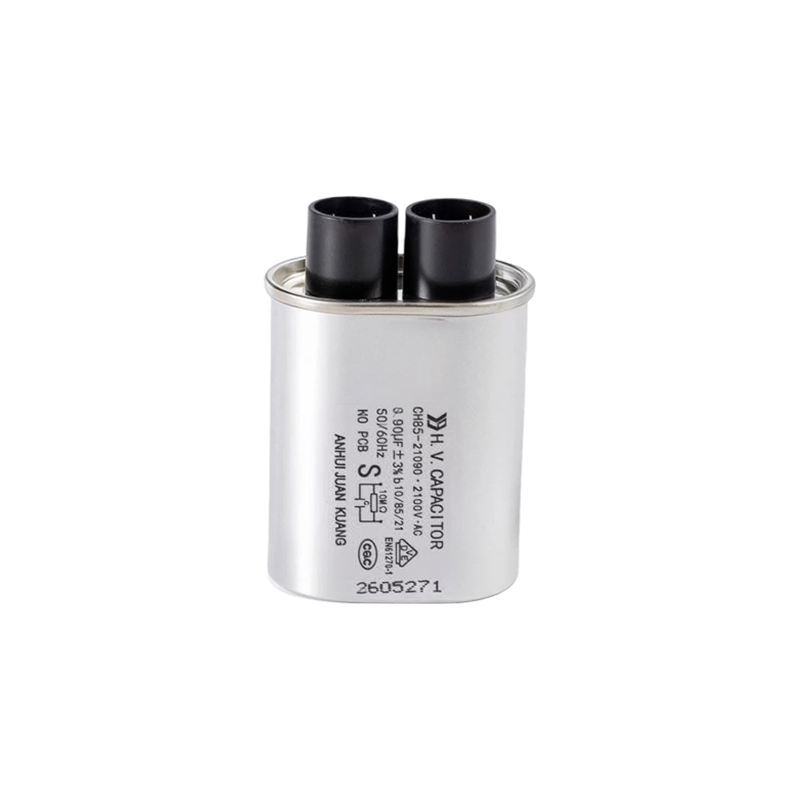

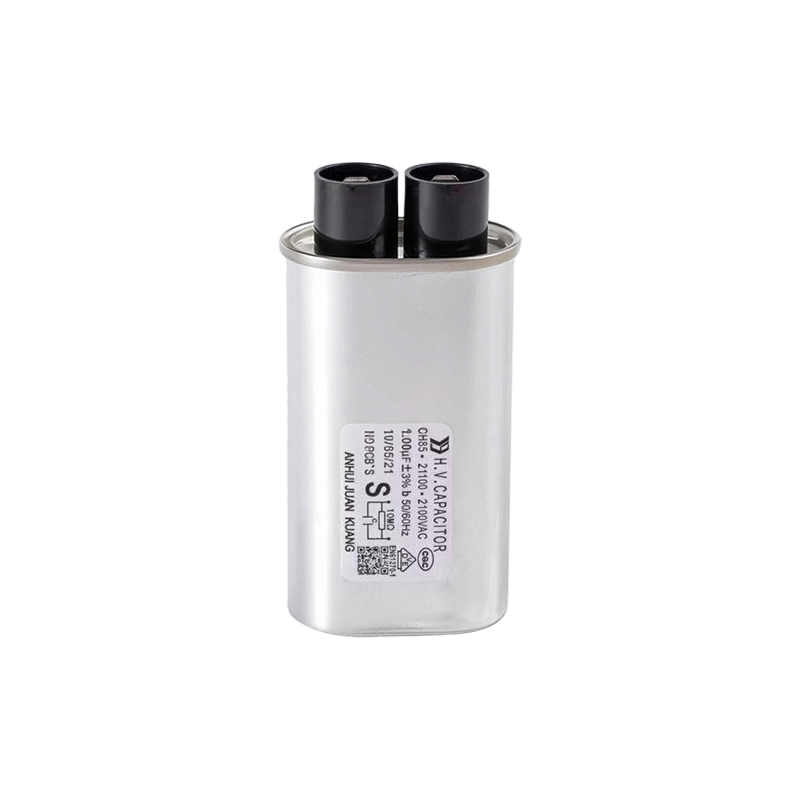

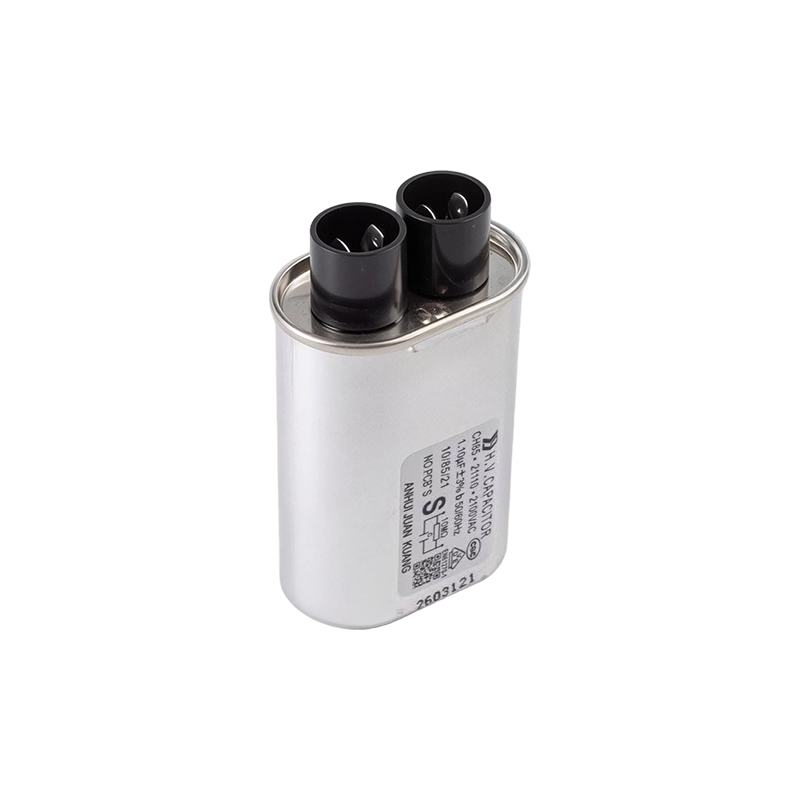

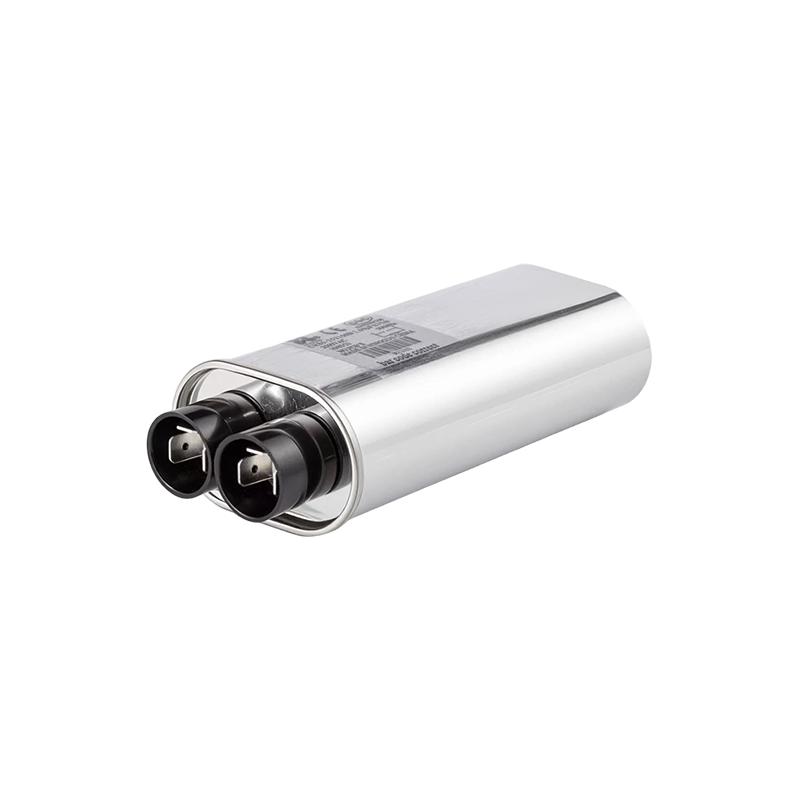

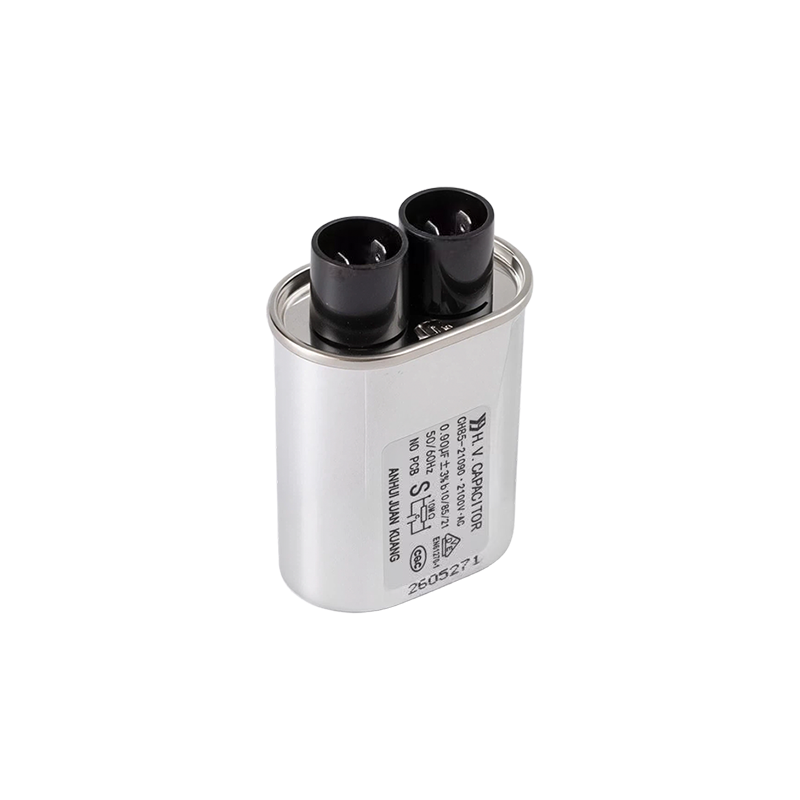

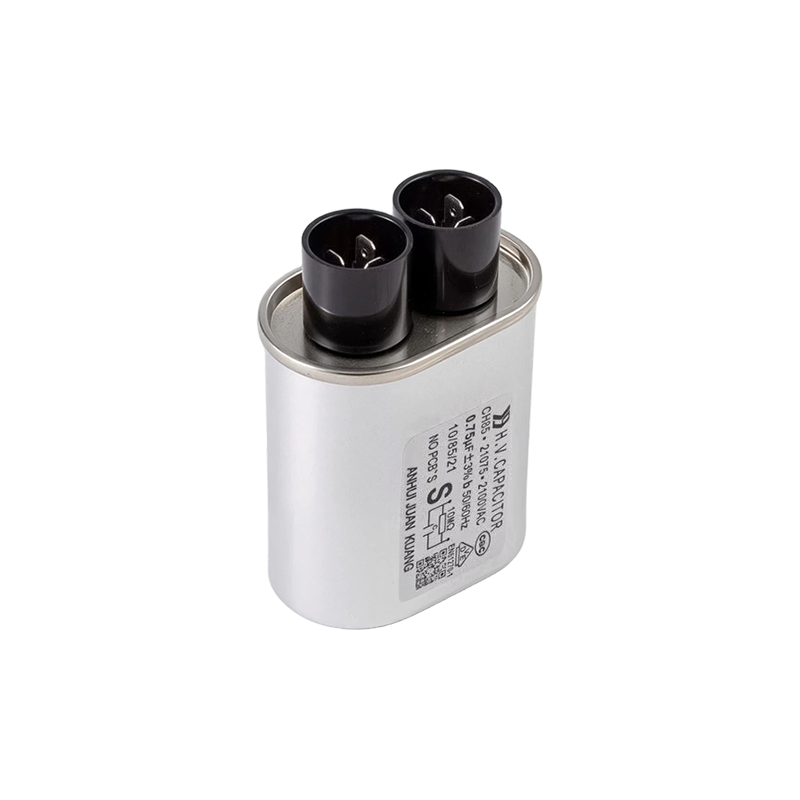

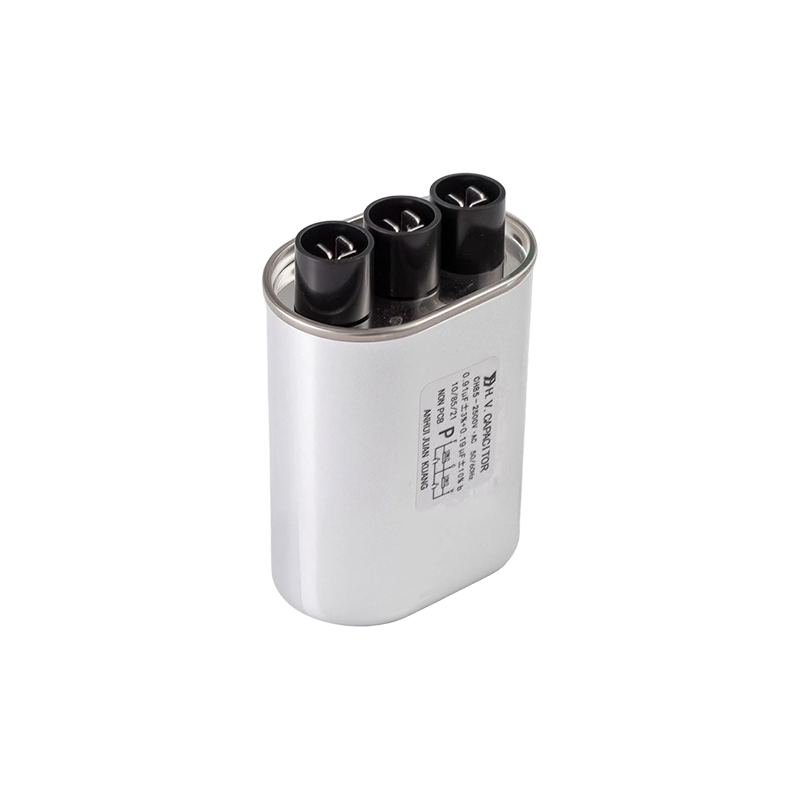

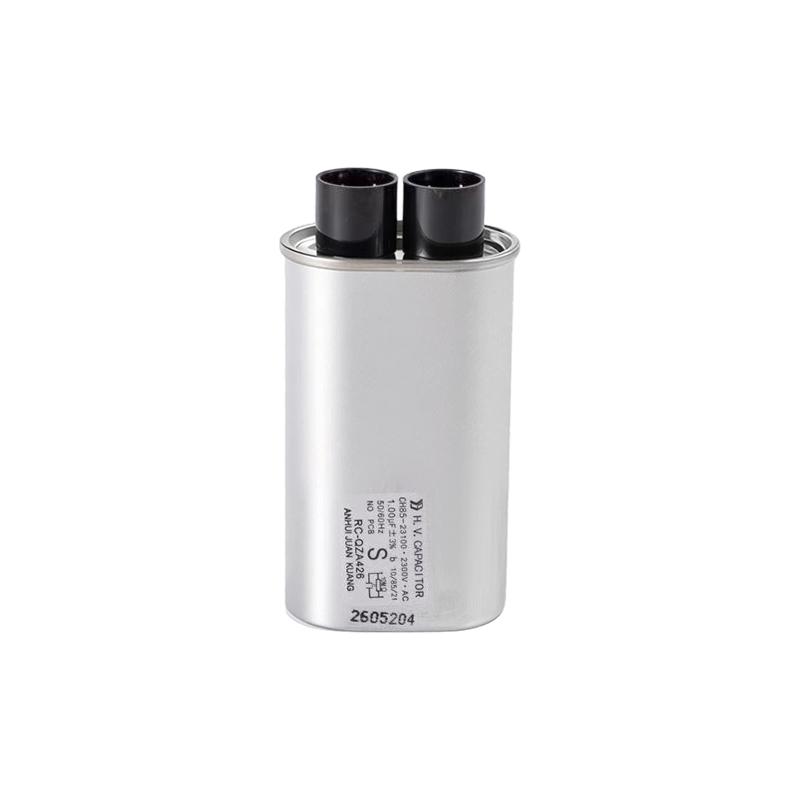

CH85 High Voltage Capacitor for Microwave Oven

◆ Product Advantages
- Specifically Designed for Microwave Oven Magnetron Voltage-Doubler Rectifier Circuits:
  CH85 series high-voltage capacitors are manufactured using composite oil-immersed
  dielectric technology, specifically designed for the ultra-high voltage withstand and
  stable high-voltage DC output requirements of the voltage-doubler rectifier circuit
  inside microwave ovens — an irreplaceable core electrical component for microwave oven
  magnetron power output
- Ultra-High Voltage Withstand Capability for Safe and Reliable Operation: High rated
  working voltage with extremely high voltage resistance capability, meeting the high-
  voltage DC requirements generated by the microwave oven voltage-doubler rectifier
  circuit during operation (typically exceeding 2000V), ensuring stable and efficient
  magnetron working power supply
- Built-In Discharge Resistor for Power-Off Safety: Product integrates a discharge
  resistor internally; after microwave oven power-off, the high-voltage charge stored in
  the capacitor is quickly discharged to a safe potential level through the built-in
  resistor, greatly reducing the risk of electric shock during maintenance and handling,
  complying with home appliance safety design requirements
- Oil-Immersed Structure with Excellent High-Voltage Insulation: Composite oil-immersed
  dielectric provides excellent insulation performance and high-voltage stability under
  strong electric field intensity, effectively preventing partial discharge and insulation
  breakdown under high voltage, ensuring long-term stable operation
- Stable Electrical Performance with Good Energy-Saving Effect: Stable product electrical
  performance helps ensure efficient and stable magnetron power output, reducing
  microwave oven no-load losses and operating noise

◆ Key Selling Points
- Universal for Both Household and Commercial Microwave Ovens: CH85 series covers
  configuration requirements from low-power household microwave ovens to high-power
  commercial microwave ovens with strong universality
- Validation by Mainstream Microwave Oven Brands: Validated by mainstream microwave
  oven brands including Galanz, Midea, and Panasonic with fully guaranteed quality
  reliability
- Energy-Saving Design Reducing Microwave Oven Operating Energy Consumption: Premium
  capacitors improve voltage-doubler rectifier circuit efficiency, helping reduce overall
  microwave oven energy consumption and meeting increasingly stringent home appliance
  energy efficiency standards
- Integrated Resistor Simplifying Microwave Oven Internal Circuits: Eliminates the need
  for external discharge resistor design, reducing material costs and assembly labor

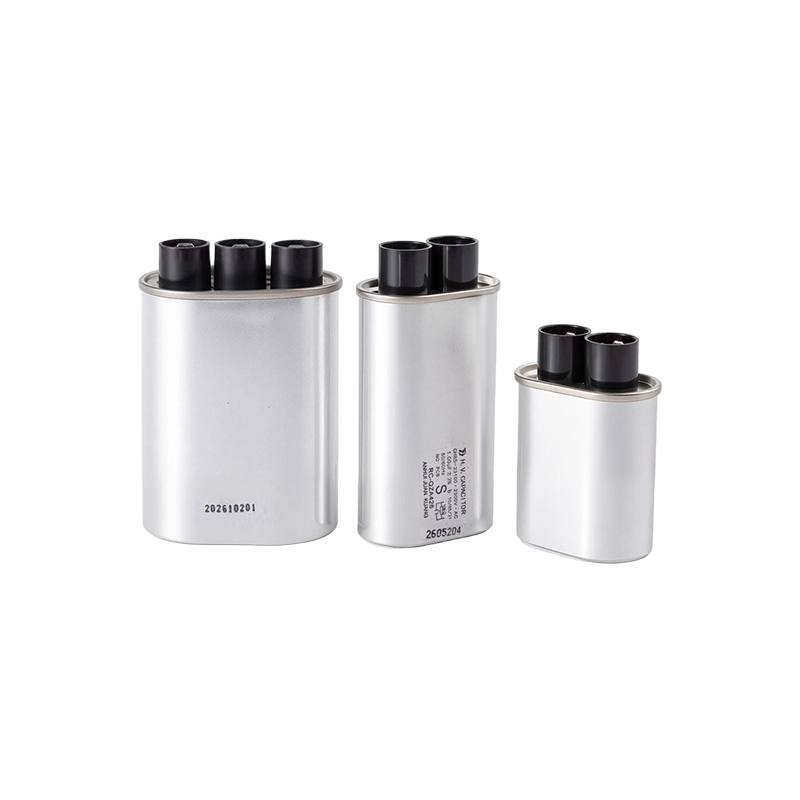

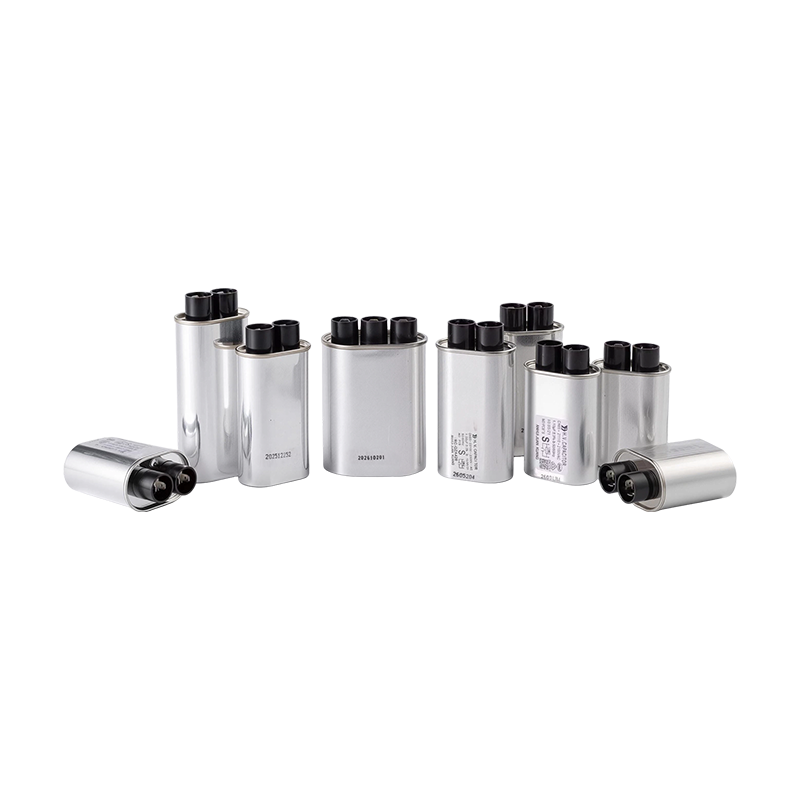

- Multiple Specifications for Different Power Segment Requirements: Available in
  different voltage withstand and capacitance specifications covering 600W to 2000W
  microwave ovens across various power segments

◆ Primary Applications
- Magnetron power supplies for household microwave oven voltage-doubler rectifier
  circuits
- High-voltage power supplies for commercial microwave ovens (catering, medical)
- High-voltage capacitors for industrial microwave heating equipment
- Dedicated replacement parts for microwave oven repairs
- OEM configuration procurement for microwave oven manufacturers
